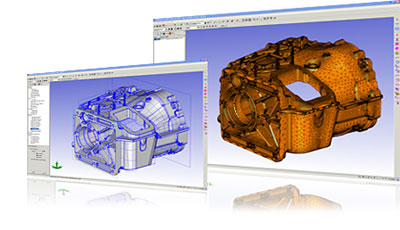

CADfix removes barriers that prevent the reuse of solid models by providing an extensive set of geometry manipulation tools for importing CAD/CAM/CAE data, repairing it, and exporting the data in the most suitable form for reuse in the downstream system.

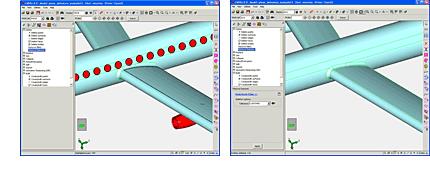

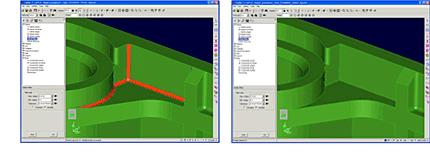

Through a user-friendly Wizard interface, the geometry repair and preparation process ensures that the model is correctly defined and suitably flavored for the downstream application by detecting and repairing a range of CAD geometry issues. CADfix also offers model de-featuring utilities which are very popular with CAE analysis users who require automated de-featuring operations (i.e. joining or collapsing of short edges and small faces, removing fillets and rounds, removing holes, etc.).
CADfix is packaged as a desktop or server solution with extensible modular functionality dependent upon the source and target systems of the end user. The application may be integrated into PLM or workflow automation tools. CADfix also serves as a pre-processor for custom geometric translation, repair, de-featuring and meshing tools for proprietary, CAE-centric OEM applications.
CAD Translation
CADfix offers numerous translation, healing & repair advantages:
The CADfix workflow accommodates novice, occasional and experienced users. Translations and repairs requiring manual intervention can be completed with minimal effort:
To learn more, please visit our CAD Translation Solution Page.
CAD Reuse for CAE
CADfix offers CAE analysts the ability to automatically and interactively repair and transform CAD geometries prior to analysis. CADfix ensures that solid or surface models are robustly translated effectively into target systems. CADfix offers a full range of import and export functionality for pre-processing CAD data from native and neutral formats
Master Model Driven FEA, CFD
With ever shortening product design cycles, the emphasis on simulation tools to provide timely results to drive the design is greater than ever. This pressure dictates FEA, CFD and EM analysis being driven off the master model CAD data. CAD provides the geometry but a great deal of analysis time is still spent working with the geometry to prepare it for analysis.
CADfix for Geometric Exchange is uniquely positioned in the CAD to CAE data flow with its ability to read and write multiple geometric formats, repair and heal poor quality geometry and de-feature and simplify complex geometric definition. In the end, CAE analysts are starting with much more robust geometric definitions for their analytical needs.
For more information, please see the CAD Data Reuse for CAE solution page.
Support/Specs支持/规格
Supported Geometry Formats (CADfix V10.0, January 20, 2015)支持的几何文件格式(CADfix V10.0, 2015.1.20)
CAD
CAE
An advanced data access toolkit is available for users to create interfaces to their own analysis codes, and a neutral mesh format is also provided.
Supported Platforms (CADfix V10.0, January 20, 2015)支持的平台(CADfix V10.0, 2015.1.20)
For CADfix support, FAQ's, troubleshooting and detailed release documents, please go to the CADfix Support Page.
